LEŅKIS, NEVIENĀDMALU L-VEIDA PROFILS. IZMĒRI, ĪPAŠĪBAS, SPECIFIKĀCIJAS

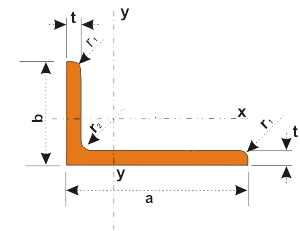

Tabula atspoguļo tērauda nevienādmalu leņķis, L-veida profils. Specifikācijas, īpašības, izmēri. Ražots saskaņā ar standartiem:


EN 10056-1:1999



Nominal dimensions
Cross-section
Nominal weight 1m
Distance to Center of Gravity
Moment Of Inertia
Radius Of Gyration
Angle x-x to u-u
a x b x t
r1
r2
A
M
Cx
Cy
X-X
Y-Y
U-U
V-V
X-X
Y-Y
U-U
V-V
.
mm
mm
mm
cm 2
kg
cm
cm
cm4
cm4
cm4
cm4
cm
cm
cm
cm
Tan a
30x20x3
4
2.0
1.43
1.12
0.99
0.502
1.25
0.437
1.43
0.256
0.935
0.553
1,00
0.424
0.427
30x20x4
4
2.0
1.86
1.46
1.03
0.541
1.59
0.553
1.81
0.33
0.925
0.546
0.98
0.421
0.421
40x20x4
4
2.0
2.26
1.77
1.47
0.481
3.59
0.596
3.8
0.393
1.26
0.514
1.30
0.417
0.252
40x25x4
4
2.4
2.46
1.93
1.36
0.62
3.89
1.16
4.35
0.70
1.26
0.69
1.33
0.53
0.38
45x30x4
4.5
2.25
2.86
2.25
1.48
0.739
5.75
2.04
6.61
1.19
1.42
0.845
1.52
0.644
0.433
50x30x5
5
2.5
3.78
2.96
1.73
0.741
9.36
2.51
10.3
1.54
1.57
0.816
1.65
0.639
0.352
60x30x5
6
2.4
4.29
3.37
2.15
0.68
15.6
2.60
16.5
1.69
1.90
0.78
1.96
0.63
0.256
60x30x6
6
2.4
5.08
3.99
2.20
0.72
18.2
3.02
19.2
1.99
1.89
0.77
1.95
0.63
0.252
60x40x5
6
3.0
4.79
3.76
1.96
0.972
17.2
6.11
19.7
3.54
1.89
1.13
2.03
0.86
0.433
60x40x6
6
3.0
5.68
4.46
2
1.01
20.1
7.12
23.1
4.16
1.88
1.12
2.02
0.855
0.431
65x50x5
6
2.4
5.54
4.35
1.99
1.25
23.2
11.9
28.8
6.32
2.05
1.47
2.28
1.07
0.577
65x50x6
6
2.4
6.58
5.116
2.04
1.29
27.2
14.0
33.8
7.43
2.03
1.46
2.27
1.06
0.575
65x50x8
6
2.4
8.60
6.75
2.11
1.37
34.8
17.7
43.0
9.57
2.01
1.44
2.23
1.05
0.569
70x50x6
7
3.5
6.89
5.41
2.23
1.25
33.4
14.2
39.7
7.92
2.2
1.43
2.4
1.07
0.496
75x50x6
7
2.4
7.19
5.65
2.44
1.21
40.5
14.4
46.6
8.36
2.37
1.42
2.55
1.08
0.435
75x50x8
7
2.4
9.41
7.39
2.52
1.29
52.0
18.4
59.6
10.8
2.35
1.40
2.52
1.07
0.43
80x40x6
7
3.5
6.89
5.41
2.85
0.884
44.9
7.59
47.6
4.93
2.55
1.05
2.63
0.845
0.258
80x40x8
7
3.5
9.01
7.07
2.94
0.963
57.6
9.61
60.9
6.34
2.53
1.03
2.6
0.838
0.253
80x60x6
8
4.8
8.11
6.37
2.47
1.48
51.4
24.8
62.8
13.4
2.52
1.75
2.78
1.29
0.547
80x60x7
8
4.8
9.38
7.36
2.51
1.52
59.0
28.4
72.0
15.4
2.51
1.74
2.77
1.28
0.546
80x60x8
8
4.8
10.6
8.34
2.55
1.56
66.3
31.8
80.8
17.3
2.50
1.73
2.76
1.28
0.544
Nominal dimensions
Cross-section
Nominal weight 1m
Distance to Center of Gravity
Moment Of Inertia
Radius Of Gyration
Angle x-x to u-u
a x b x t
r1
r2
A
M
Cx
Cy
X-X
Y-Y
U-U
V-V
X-X
Y-Y
U-U
V-V
.
mm
mm
mm
cm 2
kg
cm
cm
cm4
cm4
cm4
cm4
cm
cm
cm
cm
Tan a
100x50x6
8
4.0
8.71
6.84
3.51
1.05
89.9
15.4
95.4
9.92
3.21
1.33
3.31
1.07
0.261
100x50x8
8
4.0
11.4
8.97
3.6
1.13
116
19.7
123
12.8
3.19
1.31
3.28
1.06
0.258
100x65x7
10
4.8
11.2
8.77
3.23
1.51
113
37.6
128
22.0
3.17
1.83
3.39
1.40
0.415
100x65x8
10
4.8
12.7
9.94
3.27
1.55
127
42.2
144
24.8
3.16
1.83
3.37
1.40
0.414
100x65x10
10
4.8
15.6
12.30
3.36
1.63
154
51.0
175
30.1
3.14
1.81
3.35
1.39
0.41
100x75x8
10
4.8
13.5
10.6
3.10
1.87
133
64.1
16.3
34.6
3.14
2.18
3.47
1.60
0.547
100x75x10
10
4.8
16.6
13.0
3.19
1.95
162
77.6
197
42.1
3.12
2.16
3.45
1.59
0.544
100x75x12
10
4.8
19.7
15.4
3.27
2.03
189
90.2
230
49.5
3.10
2.14
3.42
1.59
0.54
120x80x8
11
5.5
15.5
12.2
3.83
1.87
226
80.8
260
46.6
3.82
2.28
4.10
1.74
0.437
120x80x10
11
5.5
19.1
15
3.92
1.95
276
98.1
317
56.8
3.8
2.26
4.07
1.72
0.434
120x80x12
11
5.5
22.7
17.8
4
2.03
323
114
370
66.7
3.77
2.24
4.04
1.71
0.431
125x75x8
11
4.8
15.5
12.2
4.14
1.68
247
67.6
274
40.9
4.00
2.09
4.20
1.63
0.359
125x75x10
11
4.8
19.1
15.0
4.23
1.76
302
82.1
334
50.0
3.97
2.07
4.18
1.62
0.356
125x75x12
11
4.8
22.7
17.8
4.31
1.84
354
95.5
391
58.5
3.95
2.05
4.15
1.61
0.353
135x65x8
11
5.5
15.5
12.2
4.78
1.34
291
45.2
307
29.4
4.34
1.71
4.45
1.38
0.245
135x65x10
11
5.5
19.1
15
4.88
1.42
356
54.7
375
35.9
4.31
1.69
4.43
1.37
0.242
150x75x9
12
6.0
19.6
15.4
5.26
1.57
455
77.9
483
50.2
4.82
1.99
4.96
1.6
0.261
150x75x10
11
4.8
21.6
17.0
5.32
1.61
501
85.8
532
55.3
4.81
1.99
4.96
1.60
0.261
150x75x12
11
4.8
25.7
20.2
5.41
1.69
589
99.9
624
64.9
4.79
1.97
4.93
1.59
0.259
150x75x15
11
4.8
31.6
24.8
5.53
1.81
713
120
754
78.8
4.75
1.94
4.88
1.58
0.254
150x90x10
12
4.8
23.2
18.2
5.00
2.04
533
146
591
88.3
4.80
2.51
5.05
1.95
0.360
150x90x12
12
4.8
27.5
21.6
5.08
2.12
627
171
694
104
4.77
2.49
5.02
1.94
0.358
150x90x15
12
4.8
33.9
26.6
5.21
2.23
761
205
841
126
4.74
2.46
4.98
1.93
0.354
150x100x10
12
6.0
24.2
19
4.81
2.34
553
198
637
114
4.78
2.87
5.13
2.17
0.438
150x100x12
12
6.0
28.7
22.5
4.9
2.42
651
233
749
134
4.76
2.85
5.11
2.16
0.436
200x100x10
15
4.8
29.2
23.0
6.93
2.01
1220
210
1290
135
6.46
2.68
6.65
2.15
0.263
200x100x12
15
4.8
34.8
27.3
7.03
2.10
1440
247
1530
159
6.43
2.67
6.63
2.14
0.262
200x100x15
15
4.8
43.0
33.7
7.16
2.22
1758
299
1863
194
6.40
2.64
6.58
2.13
0.259
200x150x12
15
4.8
40.8
32.0
6.08
3.61
1652
803
2024
431
6.36
4.44
7.04
3.25
0.552
200x150x15
15
4.8
50.5
39.6
6.21
3.73
2022
979
2475
527
6.33
4.40
7.00
3.23
0.550
200x150x18
15
4.8
60.0
47.1
6.33
3.85
2376
1146
2902
618
6.29
4.37
6.95
3.21
0.548
